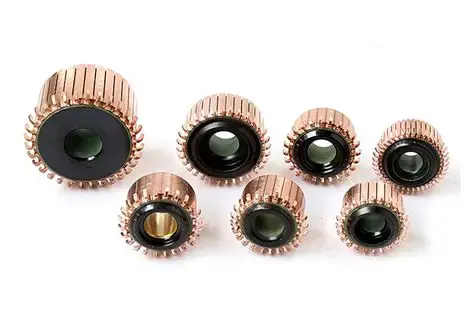

Vehicle Motor Commutator: High-Performance Design and Applications

A Vehicle Motor Commutator is an important rotary electrical switch in brushed DC motors that allows precise current reversal in spinning armatures to produce constant mechanical force. This part solves important problems in motor systems for cars and factories, like controlling electromagnetic interference, keeping the motor's temperature stable at all temperatures (-40°C to +150°C), and keeping it running even when there is a lot of shaking. The Vehicle Motor Commutator is made with precisely segmented copper bars and advanced mica insulation to make sure that power is transmitted reliably while minimizing carbon brush wear and electrical noise. These are important features for modern electric vehicles, power tools, and automotive accessories, where durability and efficiency directly affect how well they work.

Understanding Vehicle Motor Commutators: Structure and Function

Core Design Elements and Operating Principles

Motor commutators depend on carefully designed copper pieces that are divided by mica insulation layers to keep their structure strong. These pieces move against carbon brushes that stay in place, making the electrical contact needed for a steady flow of current. During rotation, the commutator changes polarity at exact times, which keeps the electric field aligned in the armature windings. This timed switching system turns electricity into a spinning force without stopping.

When used in cars, commutator systems have to be able to handle mechanical forces that are much higher than what is normally required in industry. When the speed goes over 20,000 RPM, centrifugal forces are created that make the building stronger. To keep the segments from coming apart, shrink rings or glass-fiber bands are often used. It's very important to choose the right materials. For example, high-conductivity copper alloys balance electrical performance and mechanical robustness. And mica undercutting methods stop insulator protrusion as copper wears, which is a key feature that stops brush bounce and early failure.

Commutator Types and Material Considerations

Segment-type commutators are most common in starter motors and other devices that need a lot of starting power. Their flexible design lets them be fixed and resurfaced on the job site, which extends their useful life in heavy-duty situations. On the other hand, cylindrical commutators are used in small motor designs where engineers have to make decisions based on space and weight. Each type of design meets the needs of a specific application. For example, segment commutators work best in places with a lot of current, while cylinder versions are better at keeping the balance at high speeds.

The choices you make about materials have a direct effect on how they work. Copper commutators are great at conducting electricity and letting heat escape, which makes them perfect for electric car traction motors and industrial equipment that needs to run all the time. Carbon-composite options have softer contact areas that make brushes last longer, but they lose some of their electrical efficiency. More and more, manufacturers are using copper alloys that contain silver in high-end uses. These alloys have better protection against oxidation and longer maintenance gaps. Instead of depending only on cost measures, procurement teams can better match component specifications with real-world working conditions when they understand these material trade-offs.

Performance Optimization and Maintenance of Vehicle Motor Commutators

Identifying Wear Indicators and Failure Modes

A close look at the commutator can tell you a lot about its health. A surface that works right has a smooth, chocolate-brown sheen on it. This thin film forms through controlled rust and makes the electrical contact better. Problems are starting to show up when there are dark streaks, copper staining, or uneven wear patterns. Overheating in one area, usually because of bad brush contact or internal short circuits, is shown by burned pieces. When mica conditions are high, and insulation goes over copper segments, mechanical vibrations happen, which speed up brush wear.

For the Vehicle Motor Commutator, electrical tests are used in addition to eye evaluation. Bar-to-bar voltage testing finds coil shorts before they cause a catastrophic failure, and insulation resistance testing finds moisture or contamination getting into the insulation. Maintenance teams with a lot of experience keep an eye on how much brush dust builds up. Too much carbon waste means that the wrong brush grade was chosen or that the spring tension is too low. These early warning signs let planned maintenance happen instead of emergency fixes, which lowers the cost of unplanned downtime.

Best Practices for Extending Service Life

Routine repair procedures have a big effect on how long a commutator lasts. Cleaning gets rid of electrical dust and carbon buildup that can cause parts to short-circuit. During this process, special vacuum systems keep flying particles from getting on the bearing surfaces or windings. After cleaning, experts check the depth of the mica and reduce it if needed to keep the right amount of space below the copper segments.

Brush change happens at regular times that are set by the motor's job cycle and the weather. Using the grades of brushes recommended by the maker ensures the best contact. Harder brushes last longer but may make more electrical noise, while softer compositions reduce sparking but need to be replaced more often. Calibration of the spring tightness keeps the contact pressure the same at all speeds and temperatures. These planned actions stop the chain reactions of failures that happen when old parts hurt systems nearby.

Resurfacing brings the surface back to concentricity and gets rid of any contaminants that are embedded when surface irregularities go beyond what is acceptable. Precision machining tools bring the commutator back to its original shape, which adds several repair rounds to its useful life. Whether to do in-house resurfacing or replace the part relies on how bad the damage is and how much it will cost overall. Minor surface flaws can be machined out, but deep grooves or section loosening usually mean the part needs to be replaced completely. This point of choice has a direct effect on procurement managers' budgets for upkeep and their methods for keeping track of inventory.

Vehicle Motor Commutator vs. Alternative Components: Making the Right Choice

Commutators Compared to Slip Ring Assemblies

Knowing the differences in how commutators and slip rings work makes it easier to decide which one is best for a given purpose. Slip rings keep an electrical link going without switching polarities, sending power or messages to machines that are turning. They work great in places where multiple circuits need to be connected continuously, like in industrial machines or wind turbine pitch control systems. Commutators are designed to reverse the flow of active current, which is necessary for DC motors to work.

Criteria for selection are based on this basic difference. Commutators are needed for motors that need to generate force in a single direction, while slip rings are better for systems that need to move power easily from one rotation to another. For simple signal transfer, slip rings are cheaper than commutators because they are made with more care and require specialized manufacturing. Different types of reliability profiles exist. Slip rings can handle dirt better because their surfaces are always in contact with each other, but commutators need cleaner working conditions to avoid segment-to-segment shorts.

Material Performance: Copper Versus Carbon Composite

Copper commutators are the most common choice for high-performance uses, including Vehicle Motor Commutator applications, because they are better at conducting electricity and keeping heat in check. The toughness of the material allows for higher current levels without too much wear, which is important for electric car motors since efficiency directly affects battery range. Copper's thermal conductivity gets rid of the heat that is generated during communication. This keeps shielding from being damaged and failure from happening faster.

In some situations, carbon composite commutators are clearly better than others. Their softer material shape makes brush wear less likely, so they don't need to be replaced as often in situations where modest current levels are okay. Carbon's natural ability to lubricate reduces friction, which is good for motors that work in dusty places where upkeep is hard to get to. However, carbon's higher electrical resistance means that it produces more heat at the same current loads, which limits the amount of power that can be sent. When making a purchase choice, these features should be weighed against the needs of the application. For example, copper is best for heavy-duty automotive and industrial uses, while carbon composites are better for medium-duty uses that need low upkeep.

Procurement Guide: How to Buy the Best Vehicle Motor Commutator

Essential Certification and Customization Criteria

Quality marks are objective proof of the ability to make something. The ISO 9000 certification shows that quality management is done in a planned way, and the IATF 16949 certification covers the needs of the car industry, covering things like tracking, process control, and procedures for ongoing improvement. These standards make sure that the tight tolerances needed by Tier 1 and Tier 2 car suppliers are met in terms of stability from batch to batch.

The ability to customize sets basic providers apart from strategic manufacturing partners. With OEM and ODM services, commutator designs can be made to fit particular motor shapes, voltage needs, and weather conditions. If a supplier offers technical help, they can improve segment count, mica makeup, and size requirements by using real-world application data instead of generic catalog items. Patent portfolios show how innovative a company is. Companies with idea and utility patents show they have technical know-how that gives their products performance benefits and the ability to solve problems during the development process.

Warranty clauses protect purchase investments against hidden flaws and failures that happen before they should. Replacement parts and expert help for good installation should be covered for a year as standard. When quality problems happen, disagreements don't happen because the warranty terms are clear about covering boundaries and how to file a claim. After the sale, responsive service is what sets trustworthy sellers apart from transactional ones, especially when buying things internationally, where processes make resolution times longer.

Price Analysis and Supplier Evaluation

Commutator prices depend on the type of material used, how precisely it is made, and the number of orders that come in. When it comes to price, standard copper segment assemblies for car auxiliary motors are usually in the midrange to premium range. If you have specific needs, you'll have to pay extra for engineering services. Price benefits can be gained by making volume promises. For example, annual deals can get you discounts of 15 to 20 percent compared to spot purchases while also ensuring that production capacity is allocated.

Geographic factors affect the choice of a seller beyond price. North American and European makers put a lot of emphasis on following the rules, protecting intellectual property, and providing quick technical help that works well with complicated OEM relationships. When judging suppliers, you have to look at how much production capacity they have compared to how much demand there is. Manufacturers with dedicated car sections and 20-year running records show steadiness that protects long-term supply chains. Logistics services like ocean freight, air cargo, and fast courier services are all very flexible and can be used for a variety of stocking strategies and levels of urgency.

Vehicle Motor Commutator suppliers, as OEMs are required to report on environmental issues, sustainability practices become more important in purchasing choices. Suppliers that use closed-loop copper recycling, production methods that use less energy, and responsible trash management are in line with companies' sustainability goals and often save money at the same time. These operational traits show up in source checks and certification records, showing that the company cares about the environment.

Case Studies and Future Trends in Vehicle Motor Commutator Technology

Real-World Performance Improvements

Manufacturers of electric vehicles have shown that improved commutator designs lead to measured increases in performance. One car supplier cut the amount of energy used by motors by 8% by switching to silver-bearing copper segments with precision-machined mica undercutting. This increased the range of vehicles while still meeting strict noise rules. Better control of temperature allowed for higher constant power levels without the need for extra cooling systems.

The use of modern manufacturing methods in heavy equipment shows that they make things last longer. Construction equipment that used commutators made according to IATF 16949 standards had 40% longer repair intervals than normal industrial parts. This directly cut down on operating costs and equipment downtime. These improvements came from tighter standards for concentricity and better insulation stability between segments, which stopped the insulation from breaking down too quickly in high-vibration situations.

Emerging Technologies and Market Evolution

Next-generation commutators are being made possible by progress in material science. Nano-composite copper alloys are being looked into by researchers as a way to make things last longer in difficult situations by making them more resistant to wear while still being conductive. Using additive manufacturing may make it possible to make complicated shapes that aren't possible with standard machining. This could improve the cooling paths inside commutator bodies.

The movement toward electrification that is changing the car market gives commutator makers both chances and problems. Brushless motor designs are becoming more popular in some situations, but brushed DC motors are still widely used in low-cost systems and certain performance areas where their ease of use and high starting torque make them stand out. Suppliers who invest in mixed technologies that blend traditional knowledge of commutators with new materials and production methods will be better able to meet the changing needs of the market.

Digitalization changes buying tactics by making it easier to see and track the performance of suppliers. IoT-enabled repair systems can figure out when a commutator needs to be replaced based on operating data instead of set schedules. This helps keep inventory levels at the best level and cuts down on last-minute purchases. These changes in technology credit providers that offer more than just delivering parts. For example, data analytics and predictive maintenance partnerships can create value.

Conclusion

To choose the right commutators for a Vehicle Motor Commutator, you have to weigh the technical performance against the practical needs and the costs over the product's lifetime. Knowing about structural principles, repair procedures, and material trade-offs helps you make smart purchasing choices that improve the efficiency of motors. Strategic sellers are different from common vendors because they have industry certifications, the ability to customize, and years of experience making things. New technologies offer better performance and longer life, and case studies show how precision-engineered parts can help in real life. To ensure long-term operating success, procurement teams should give priority to suppliers who offer full support, from the initial technical advice to prompt after-sales service.

FAQ

What maintenance intervals should be followed for motor commutators?

Maintenance plans are based on the environment and job pattern. When motors are kept clean and run constantly, they usually need to be inspected every 2,000 to 3,000 hours. However, if they are in a high-vibration or dirty setting, they may need to be checked every three months. Visual inspection finds new wear patterns, and electrical testing finds problems that are starting to form before they break. Usually, you should change the brushes every other inspection cycle. However, the real rate of consumption depends on the motor load and the environment. By using wear measures and performance trends to set up condition-based maintenance routines, intervals can be optimized for each application.

Can slip rings substitute for commutators in existing motor designs?

Because of fundamental changes in function, direct replacement is rarely possible. Commutators actively reverse the current, which is necessary for DC motor power generation. Slip rings, on the other hand, just keep the electrical connection while the motor is turning. To replace a commutator with slip rings, the motor would have to be completely redesigned, including the way the windings are set up and the control circuits. Slip rings can be useful in situations where all that's needed is a spinning electrical link and no polarity reversal, but commutation is what most DC motor functions depend on. An engineering review should check to see if the application really needs a commutator or if there are other motor designs that would work better for the job.

What causes premature commutator failure in automotive applications?

Some common ways that things go wrong are choosing the wrong brush grade, which can lead to too many sparks and contamination, which can cause shorts between segments, thermal stress from not enough heat absorption, and mechanical damage from shaking. When insulation wears more slowly than copper segments, surface flaws form that speed up brush usage. This is called high mica conditions. Overloading the electrical system causes localized warmth that damages the insulation in the segments and oxidizes the copper. Materials break down faster than regular wear patterns predict because of things in the environment, like water getting in or chemicals being exposed. Systematic root cause analysis usually finds more than one contributing factor, not just one failure mechanism. This helps with taking corrective steps that get to the bottom of the problem.

Partner with Angu for Superior Commutator Solutions

Angu has been making precision parts for 20 years and makes Vehicle Motor Commutators for automakers, industrial equipment makers, and power tool companies all over the world. Our ISO 9000 and IATF 16949 certifications ensure consistent quality that meets international car standards. Additionally, our three idea patents and six utility model patents show that we are constantly coming up with new ways to improve performance in the real world. We provide OEM/ODM commutator designs that are precisely designed to meet your needs within dependable 30-day production processes. Our products come with a full one-year guarantee and prompt replacement support for any quality issues.

Whether you need high-current car commutators for electric vehicles or precise parts for industrial automation, our expert team works together throughout the development process to make sure that the designs are best for your needs. Our established quality systems make sure that there is consistency from batch to batch, which is very important in mass production settings. We offer a range of flexible logistics choices, such as ocean freight, air cargo, and fast courier services, to meet your delivery needs. As a reliable provider of Vehicle Motor Commutators, we know how hard it is for sourcing managers to make decisions about what to buy. That's why we offer clear pricing structures that balance performance needs with budget facts.

Get in touch with Angu right away at chenrf@angu.com to talk about your commutator needs. Our engineering team is ready to look over your requirements, suggest the best options, and give you full technical information to back up your choice to buy. Partnering with a well-known company that cares about quality, new ideas, and long-term customer success will give you peace of mind.
