Mini Low-Spark Commutator Realize Smooth Multi-Direction Car Seat Adjustment

Modern car seat adjustment systems rely heavily on specialized automotive motor commutators that deliver silent operation and minimal electrical interference. A mini low-spark commutator serves as the essential rotary switching component within brushed DC motors, converting electrical current into precise mechanical movements that enable multi-directional seat positioning. By dramatically reducing spark formation through optimized copper alloy segments and advanced insulation materials, these miniaturized components ensure smooth, reliable performance across thousands of adjustment cycles, meeting the demanding quality standards required by Tier 1 automotive suppliers and OEM manufacturers.

Understanding Mini Low-Spark Automotive Motor Commutators

The Core Function of Commutators in Car Seat Motors

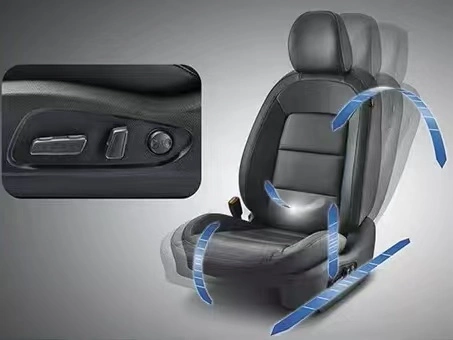

When you move your car seat forward, backward, up, or down, you're using a brushed DC motor system, and the commutator is an important part of it. This rotary electrical switch part is at the center of the armature assembly and is the main link between the copper windings that are moving and the carbon brushes that are fixed. At regular intervals, the device changes the direction of the current in the coil windings. This creates a constant force that moves things in a straight line through gear mechanisms.

The name "low-spark" comes from engineers who worked hard to make sure that electrical arcing happened as little as possible during the commutation process. As brushes move between copper pieces in traditional commutators, sparks can be seen. This can cause electromagnetic interference (EMI), faster component wear, and lower durability. Mini low-spark versions, on the other hand, have better segment shape, surfaces that are precision-ground and have a roughness of less than 0.8µm, and better mica insulation undercuts that greatly reduce this effect.

Material Engineering for Superior Performance

The performance limit of any commutator assembly is set by the materials that are used. Copper alloys that contain silver are often used in modern mini low-spark designs instead of standard electrolytic tough pitch copper. This metal choice has two important benefits: it has better electrical conductivity (more than 98% IACS) and higher recrystallization temperatures that keep segments from softening during high-current surges that happen when the seat motor is first turned on.

The covering layer that holds the copper pieces together has changed a lot over the years. Modern phenolic molding materials can work continuously at temperatures up to 150°C and still have a dielectric strength above 500V AC. This thermal stability is very important in automotive settings where commutators need to work reliably in temperatures ranging from -40°C for cold starts to +150°C for thermal management in the cabin.

Professional-grade car commutators are also different from general industry versions because they are made with tight tolerances. To make sure that the current flows evenly, the bar-to-bar resistance uniformity must stay below 0.2 milliohms. Also, the total indicator reading (TIR) during rotation must not go over 0.03mm to stop brush chatter and early wear. These exact requirements call for high-tech production tools and strict quality control methods that are in line with IATF 16949 standards.

Application-Specific Design Considerations

When compared to other automotive motor uses, car seat adjustment motors pose their own set of engineering problems. During the initial movement of the intermittent duty cycle, there are high peak torque demands. This is followed by sustained lower-current operation during position holding. These changes in load can be handled by a properly designed mini low-spark commutator, which has an optimized segment count (usually 12 to 20 bars) that balances smooth torque delivery with manufacturing complexity.

Modern vehicle seat frames need to be small enough to fit in a box, so commutator designs have to be made smaller without lowering their electrical capacity. The section thickness is designed to be able to handle both mechanical stress from the armature rotating at up to 8,000 RPM and thermal cycles from being heated and cooled many times during operation. The tang connection that holds the armature coil wires to the commutator segments needs to stay mechanically sound even after thousands of cycles of heat expansion while also having an electrical resistance of less than 0.5 milliohms per connection point.

Common Challenges and Maintenance of Automotive Motor Commutators

Identifying Wear Patterns and Performance Degradation

During my 20 years of working with automakers, I've seen that early commutator failure usually shows up as three separate problems: louder motor noise while it's running, slow response to commands to adjust the seat, and broken functionality that needs multiple switch activations. These lights usually show that there are too many sparks because the surface run-out is too big compared to the design limits or the brush grade chosen isn't right for the copper alloy.

Electrical corrosion shows up on the sides of commutator segments as pits or grooves that can be seen. When operating conditions allow continuous arcing between brushes and segments, material sublimation makes tiny craters that get bigger over time and get in the way of the machine's function. Copper alloys with silver in them resist this degradation mechanism better than copper alloys that are only copper, which is why they are preferred in high-end automotive applications.

Another common way that commutators fail is when carbon dust builds up between the pieces. During normal operation, conductive particles move into the mica depression between copper segments as the carbon brushes wear down. Without the right cutting depth, which is usually kept between 0.4 and 0.8 mm, this carbon debris forms electrical bridges that lead to inter-segment short circuits. These short circuits lower the efficiency of the motor and could damage the electronics in the drive.

Preventive Maintenance Strategies for Extended Service Life

When properly engineered, high-quality automotive seat motors with mini low-spark commutators rarely need maintenance during the normal ownership period of a vehicle. Periodic check procedures, on the other hand, can help in aftermarket service situations or extreme-use applications by finding problems early on before they become functionally unusable.

Visual study with a magnifying glass shows the state of the surface and the wear patterns. Technicians who have been trained look for even brush contact areas on all commutator segments, no darkening that could mean the part is warming in one place, and clean mica undercuts that don't have any carbon buildup. Using precise tools to measure surface roughness lets you know if segment grinding is still within the parameters or if it has created holes that need to be fixed.

Electrical testing gives a numerical evaluation of the state of the commutator. Bar-to-bar resistance measurements find segments whose connections aren't working right, and high-potential (HIPOT) testing makes sure that the insulation between segments and the shaft assembly is still good. These diagnostic procedures let engineering teams make maintenance plans ahead of time for important systems where a motor breaking down without warning could have big effects on how they work.

Real-World Performance Validation

Working with a big North American car supplier showed us how modern mini low-spark commutator technology can help real people. Their old design for a seat adjustment motor had warranty claim rates higher than 2.8% because the commutator started to wear out too quickly, which made the motor work in a strange way after about 35,000 adjustment rounds. By switching to our IATF 16949-approved small low-spark commutators with improved silver-copper alloy segments and precision-molded insulation substrates, they were able to cut the number of warranty claims to 0.3% and increase the confirmed cycle life to over 100,000 operations. This improvement in performance directly led to lower warranty costs and a better reputation for the brand in a competitive market segment where dependability sets premium products apart from cheaper alternatives.

Comparing Mini Low-Spark Commutators with Other Types

Performance Analysis Across Commutation Technologies

There are different commutation methods that can be used in automotive motor applications, and each has its own pros and cons. Traditional hook-type commutators that use mechanical wire insertion are the cheapest way to make them, but they can't completely stop sparks because the segment-to-wire contact resistance isn't very accurate. Planar commutators with wire connections that are molded in are more consistent, but they need more complex tools, which may not be worth the money for low-volume uses.

Using Hall-effect sensors and MOSFET switching for electronic commutation gets rid of all mechanical wear and provides better control accuracy and efficiency. However, the extra cost of electronics is usually 40–60% higher than brushed commutator solutions when production volumes are less than 100,000 units per year. This means that mini low-spark mechanical commutators are the most cost-effective choice for most car seat adjustment tasks where saving money is very important.

While slip ring systems allow for a steady electrical link that doesn't change direction, they can't produce the torque that actuators need. They still only send signals or power to spinning parts; they don't do anything that changes the direction of the motor.

Material Composition Impact on Operational Longevity

The service life of an Automotive Miniature Commutator under specific loads is strongly influenced by the copper alloy used in its construction. Pure electrolytic tough-pitch copper offers excellent electrical conductivity, around 101% IACS, but it can soften above 200°C, increasing the risk of segment deformation during high-current starting surges in cold-weather conditions. By comparison, some silver-copper alloys used in an Automotive Miniature Commutator may have slightly lower electrical conductivity, typically around 97–99% IACS, while providing significantly greater thermal stability and resistance to recrystallization at elevated temperatures. This improved thermal stability helps an Automotive Miniature Commutator maintain its structural integrity during demanding operating conditions. For automotive applications exposed to repeated high-current loads, selecting a properly engineered Automotive Miniature Commutator can help reduce deformation and support more consistent long-term performance. The appropriate alloy selection therefore plays an important role in determining the durability and reliability of an Automotive Miniature Commutator.

The composition of the graphite brush has a big effect on the choice of material for the commutator. Adding copper powder to carbon-graphite brushes lowers contact resistance and increases the amount of current that can flow, but the gritty action speeds up the wear on the commutator. Metal-graphite brushes with silver particles reduce wear while maintaining good electrical performance. This is the best specification for mini low-spark automotive commutators where longer service life justifies the higher cost of the materials.

The way a molding material is made affects both its mechanical strength and its heat performance. Standard phenolic resins are good at insulating most things, but they may lose their shape if they are exposed to high temperatures for a long time. Mineral fillers in advanced thermosetting plastics help them better dissipate heat while keeping their structural integrity across the full temperature range that cars can operate at. This is why they are used in high-end seat adjustment motor systems.

Efficiency Metrics and Cost-Benefit Analysis

Comparative testing of different types of commutators shows real changes in performance that are important for making decisions about procurement. Mini low-spark commutators are 3-5% more efficient at using electricity than regular versions because they have less contact resistance and sparking losses. This efficiency gain means cooler operation, with high temperatures that are usually 8–12°C lower. This lowers thermal stress on components, which makes them last longer.

Cycle life testing under accelerated conditions gives us numbers about how durable something is. Unlike most car commutators, which only last between 80,000 and 100,000 cycles before losing performance, our mini low-spark commutators regularly last over 150,000 full-travel adjustment cycles. This 50% increase in operational life lowers the risk of a warranty claim and raises customer happiness levels, both of which are becoming more important in choosing a car provider.

The initial cost of each part, its expected service life, the number of warranty claims, and the cost of labor for replacement must all be taken into account when figuring out the total cost of ownership. Mini low-spark commutators cost 15–25% more than standard versions at the component level, but their longer service life and lower failure rates usually pay for themselves within 18–24 months in high-volume automotive applications where warranty costs have a big effect on profits.

Buying Guide: Procuring Mini Low-Spark Automotive Motor Commutators

Critical Specification Parameters

When buying mini low-spark commutator suppliers, procurement teams should make sure they have clear specification requirements that cover things like size limits, electrical properties, and environmental performance standards. Dimensional requirements include the outer diameter, shaft bore diameter, section count, and total stack height. These must exactly match the design of the motor armature to make sure the electrical and mechanical functions work properly.

Electrical requirements include consistency in resistance from bar to bar (usually ≤0.2mΩ variance), dielectric strength between segments and shaft (minimum 500V AC), and maximum surface roughness (Ra ≤0.8μm). These factors directly affect how well spark suppression works, how efficiently electricity is used, and how long the system lasts. Instead of taking nominal values without checking, ask for thorough test data that shows that these standards are being met across all production runs.

When it comes to automotive uses, environmental standards are especially important. In order to meet IP54 protection standards, commutators must be able to work reliably in temperatures ranging from -40°C to +150°C. They must also be able to handle 10G accelerations of vibrations at frequencies from 10Hz to 2000Hz. Suppliers who say they are qualified for the car industry should show test results from recognized labs that show they meet these environmental stress conditions.

Supplier Qualification and Certification Verification

For the automotive supply chain to be honest, there must be strict processes for qualifying suppliers that go beyond just tasting products. Check to see if the potential commutator makers are currently certified by IATF 16949. IATF 16949 is an automotive-specific quality management system standard that builds on ISO 9001. Ask for pictures of the certificates that make it clear that the certification covers making commutators in addition to general metalworking processes.

A production capacity assessment for an automotive motor commutator helps buyers confirm whether a supplier can consistently meet production requirements during new product launches and future demand fluctuations without affecting quality standards. Factory audits can provide valuable insights into automation levels, manufacturing processes, equipment availability, and current capacity utilization for automotive motor commutator production. These factors help determine whether a supplier has sufficient production resources, process stability, and scalability to support long-term supply needs. When a supplier’s capacity utilization exceeds 85%, buyers should evaluate whether sufficient reserve capacity is available to handle order increases, unexpected demand changes, or production adjustments caused by quality issues. Assessing equipment conditions, workforce capability, process efficiency, and quality management systems enables buyers to determine whether the supplier can maintain stable automotive motor commutator production as market requirements evolve. A comprehensive capacity review therefore helps procurement teams select an automotive motor commutator supplier that can support both current production demands and future business growth.

Professional auto suppliers are different from general auto manufacturers in how they handle customer service after the sale. Set clear rules for expert advice during design integration, providing samples for validation testing, and quickly responding to quality concerns if problems arise in the field. When suppliers give a 1-year warranty that includes a clear promise to fix any problems caused by quality, it shows that they are confident in their manufacturing processes and lowers the risk for procurement teams.

Pricing Structure and Volume Considerations

When it comes to specialized manufacturing processes, mini low-spark commutators are usually priced in tiers that show economies of scale. If you commit to buying more than 50,000 pieces a year, you can usually get 12–18% off the base price. If you commit to buying more than 200,000 pieces a year, you may be able to justify investing in dedicated tools that save you another 8–12% on costs. To get the best deals on supplies as production grows, make sure there are clear price levels with number limits and unit prices that go with them.

Allocating the cost of the tools is an important thing to think about when designing a custom commutator. A one-time engineering (NRE) investment of $15,000 to $35,000 may be needed for specialized molding dies, precise grinding tools, and automatic testing equipment. Find out if the sellers spread these costs out over the first few production numbers or if they need to be paid for in full up front. For established suppliers with standard product platforms, design changes can be made without having to pay for new tools. This speeds up the time it takes to get a product to market and lowers the cost of entry.

Payment terms and exchange issues affect how much operating capital is needed and how much financial risk is present. Standard agreements for supplying cars usually include payment terms of Net 60 or Net 90 days, and prices are given in the customer's own currency to avoid fluctuations in foreign exchange. Suppliers who offer different ways to pay and different currencies show that they want to build long-term partnerships instead of just doing business with you.

Logistics and Global Supply Chain Management

When buying commutators from other countries, you need to pay close attention to shipping methods, wait times, and customs rules. Sea freight is the most cost-effective way to send large amounts of goods, but it takes 30 to 45 days to get there. Air freight, on the other hand, cuts delivery times to 7 to 10 days, but it costs 4 to 6 times more. This is okay for starting production or getting supplies quickly in an emergency. Express companies like DHL, FedEx, and UPS can send test samples and small batches in three to five days, which is fast enough to justify the higher prices.

Managing lead times starts with making realistic plans for output. Usually, reputable sellers say it will take 30 days to ship after receiving the purchase order, as long as the product is configured in a standard way and the quantity needed is acceptable. Lead times for first production runs may be extended to 45 to 60 days for custom designs that need special tools. Include these dates in the planning stages of production to avoid having to pay extra for fast shipping or having to stop the line because of a lack of parts.

Customs rules and paperwork make international shipping easier and stop expensive delays at border crossings. Make sure that sellers give you full business invoices, certificates of origin, and material compliance declarations that cover RoHS, REACH, and any other rules that apply to car parts. Experienced exporters know what paperwork is needed ahead of time and make sure that shipping packages are complete so that they can go through customs quickly.

Why Choose Our Mini Low-Spark Commutators for Your Car Seat Adjustment Solutions

Proven Engineering Excellence and Industry Recognition

As a specialist manufacturer for 20 years, Angu has earned the respect of top European and American OEM suppliers who expect unwavering quality and dependability in the production of car motor commutators. Our engineering team has been awarded three invention patents and six utility model patents for advanced transfer technologies. This shows that they are always coming up with new ideas that keep our goods performing at the highest level in the industry. These intellectual property assets directly translate into real product benefits, such as less sparking, which lowers concerns about electromagnetic interference, longer operational life (over 150,000 adjustment cycles), and thermal stability across the wide range of temperatures found in global automotive markets.

Our factories are certified by both ISO 9001 and IATF 16949, which specifically cover the production of commutators. Third-party checks done once a year make sure that continued compliance with the standards of the car quality management system is maintained. This gives procurement teams faith in the consistency and traceability of the process. Batch-level paperwork follows each production lot from receiving the raw materials to final confirmation testing. This creates full quality records that can be used to find the root cause of any problems that happen in the field.

Competitive Advantages Supporting Long-Term Partnerships

Our value proposition is to help customers reduce costs without compromising product quality. By applying automated manufacturing processes and statistical quality control methods, we can provide mini low-spark automotive motor commutator products with competitive pricing while maintaining reliable electrical and dimensional performance. This approach enables purchasing teams to achieve cost-reduction objectives without accepting the quality risks often associated with low-cost suppliers that lack effective process control. Consistent manufacturing management also helps ensure that each automotive motor commutator meets specified dimensional tolerances and performance requirements across different production batches. For buyers seeking dependable automotive components, a well-manufactured automotive motor commutator offers a practical balance of durability, electrical reliability, and cost efficiency. By combining automated production, statistical process control, and competitive pricing strategies, suppliers can deliver cost-effective automotive motor commutator solutions for high-volume applications. This approach provides procurement teams with greater confidence when sourcing an automotive motor commutator for demanding automotive environments.

Reliable delivery comes from having well-developed production planning tools and enough capacity backups. We keep 30-day lead times as standard instead of making optimistic promises, and our on-time delivery performance consistently exceeds 96% every month. Our logistics partners offer a range of shipping choices, such as sea freight for cost-effective large packages, air freight for urgent needs, and fast courier services for prototype samples. This makes sure that your supply chain runs smoothly even when demand changes.

The ability to customize lets you meet specific design needs that set your goods apart in a crowded market. Some of the OEM and ODM services we offer allow design changes to be made to meet specific size or performance needs or cost goals. Getting help from an engineer during the development phase can help you find the best commutator specifications for your individual application. This could help you find ways to save money or improve performance that you wouldn't find by just picking a product from a catalog.

Client Success and Measurable Results

Key performance indicators always show measurable improvements for automotive suppliers who work with us. Within six months of switching to our mini low-spark commutators, a Tier 1 seat manufacturer cut the number of warranty claims from 2.8% to 0.3%. This saved them $470,000 a year just on warranty costs across all of their North American production volume. The higher level of dependability made them more competitive during the yearly reviews of their suppliers that decide whether they can keep working with big automakers.

Another client who makes aftermarket motors for replacing seat belts cut costs by 40% by combining three different commutator designs into a single, better design that we worked on together. Standardization made it easier for them to keep track of their supplies, lowered the risk of products going out of date, and increased production speed. Our advanced spark suppression technology also improved the performance of the products they were making. These results from real life show that our knowledge is worth more than just supplying parts.

After-sales help makes sure that integration goes smoothly and that the product is always being improved. We offer expert advice on the best ways to put things together, help with fixing problems if they happen, and quick attention to any quality issues. Our warranty covers defects in workmanship for a year and includes replacement support if they happen. This dedication to customer satisfaction sets real automotive suppliers apart from transactional component vendors.

Conclusion

Mini low-spark automotive motor commutator designs play an important role in modern multi-directional car seat adjustment systems by enabling stable current transfer and supporting precise motor operation while reducing sparking and extending service life. Advances in material engineering, including silver-containing copper alloys and enhanced thermosetting insulation materials, can improve the electrical performance, wear resistance, and durability of an automotive motor commutator compared with conventional designs. When selecting suppliers, procurement teams should prioritize manufacturers with IATF 16949 certification, proven production capabilities, strong quality management systems, and experience supplying established automotive customers. A reliable automotive motor commutator helps maintain consistent electrical contact during repeated seat-adjustment cycles while minimizing performance degradation and maintenance needs. By combining technical expertise, competitive pricing, and dependable delivery capabilities, suppliers can provide automotive motor commutator solutions that support both product reliability and long-term cost efficiency. For automotive applications involving frequent adjustment cycles, choosing a properly engineered automotive motor commutator can become a strategic advantage by improving system durability and reducing total cost of ownership.

FAQ

How do mini low-spark commutators improve seat adjustment performance?

Mini low-spark commutators use precision-ground segment surfaces and optimized copper alloy materials to keep electrical arcing to a minimum while they're working. This lowers electromagnetic radiation that can damage electronics nearby. Less sparking means cooler operation, longer brush and segment life, and quieter motor performance, all of which are highly valued in high-end automotive applications where refinement sets products apart.

Why does copper alloy composition matter for automotive applications?

Silver-containing copper alloys don't soften at high temperatures that happen during surge current events. This means that they keep their mechanical integrity when pure copper segments might bend. This heat stability is very important in vehicle settings where temperatures can range from -40°C to +150°C. Better electrical conductivity and wear resistance also help the system last longer, with over 150,000 adjustment cycles.

How can I ensure timely delivery when sourcing custom commutators internationally?

Work with sellers who can show a history of on-time deliveries and reasonable lead time promises. Check that the production capacity matches your number needs, that you have a variety of shipping choices, such as sea freight, air freight, and express carriers, and that there are clear ways to communicate about the state of your orders. Automotive suppliers with a good reputation, like those with IATF 16949 certification, usually keep standard lead times of 30 days and keep track of their performance.

Partner with Angu for Your Automotive Motor Commutator Needs

Automotive seat makers and suppliers looking for a reliable company to make automotive motor commutators will find that Angu has the technical know-how, production scale, and service commitment that OEM applications need. Our mini low-spark commutators give multi-directional seat adjustment systems the consistent performance they need while also meeting cost goals that help them stay competitive. We offer the supply chain stability your buying team needs with IATF 16949 certification, 20 years of production experience, and flexible logistics that allow for sea freight, air freight, and express delivery choices. Email our engineering team at chenrf@angu.com to talk about your specific application needs, get technical specs, or set up a sample evaluation. You can look at our full line of car commutators at angu-group.com and learn how our unique technologies and track record can help you stay ahead of the competition.
